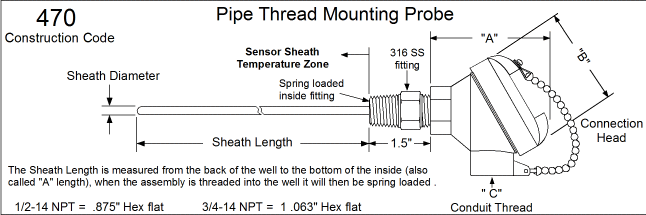

Spring Loaded Double Thread and Head RTD Assemblies Large Thread Size – Type 470
Pipe Thread Mounting
Designed to thread directly into a thermowell with hex fitting with the spring-loaded probe contacting the bottom of the thermowell.
Configure Product View 2D Drawing

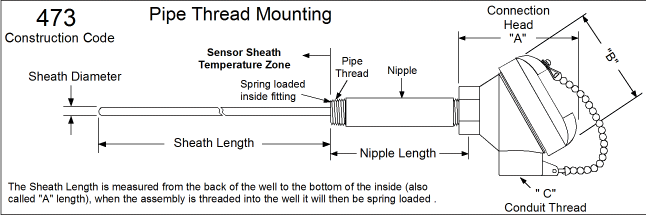

Spring Loaded Nipple Only and Head RTD Assemblies For Thermowell Mounting- Type 473
Pipe Thread Mounting
Designed to thread directly into a thermowell with straight nipple with the spring-loaded probe contacting the bottom of the thermowell.
Configure Product View 2D Drawing

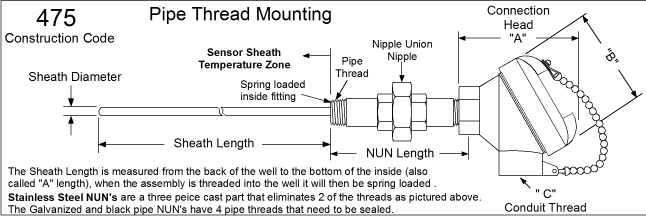

Spring Loaded Nipple-Union-Nipple and Head RTD Assemblies For Thermowell Mounting- Type 475
Pipe Thread Mounting probe with head
Designed to thread directly into a thermowell with spring-loaded probe to bottom of the well. Connection head added for remote wiring using conduit and a union allows the adjustment of the head to the conduit.
Configure Product View 2D Drawing
