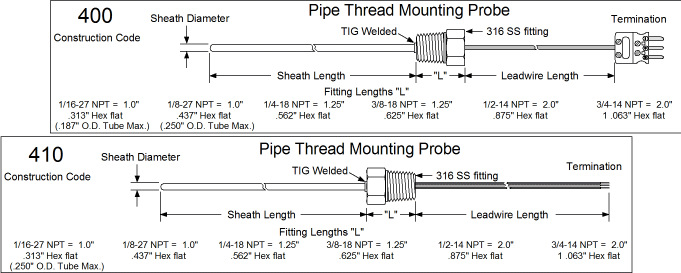

Fixed Single Thread RTD Assemblies – Type 400, 410
Pipe Thread Mounting probe
Designed to thread directly into a process or tank with a single sided hex pipe fitting.
Configure Product View 2D Drawing
Fixed Single Thread & Head RTD Assemblies – Type 420
Pipe Thread Mounting Probe
Single sided hex pipe fitting for mounting the connection head and no thread on the process side.
Configure Product View 2D Drawing
Compression fitting & Head RTD Assemblies – Type 430
Pipe Thread Mounting Probe
Single sided hex pipe fitting for mounting the connection head and a compression fitting on the process side allowing adjustable length.
Compression fitting sealing ferrule choices:
Metal Ferrules are not re-adjustable after tightening
Configure Product View 2D Drawing
