Click on configure products to drill down, or view images and 2D drawings of RTD product categories.
Click on configure products to drill down, or view images and 2D drawings of RTD product categories.

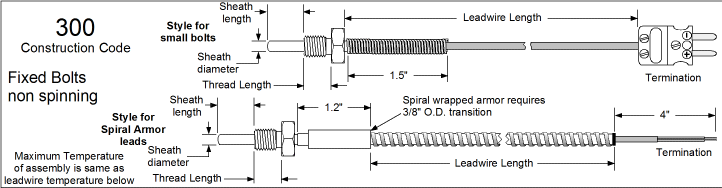

Fixed Straight Bolt RTD Assemblies – Type 300
Fixed thread non-spinning
Small thread size bolt with tube extension to mount into a dry hole.
Configure Product View 2D Drawing

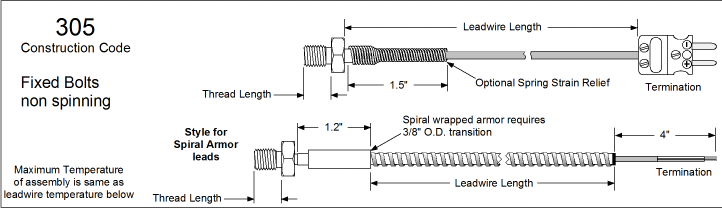

Fixed Bolt RTD Assemblies – Type 305
Fixed thread non-spinning
Small thread size bolt only with no tube extension to mount into a dry hole.
Configure Product View 2D Drawing

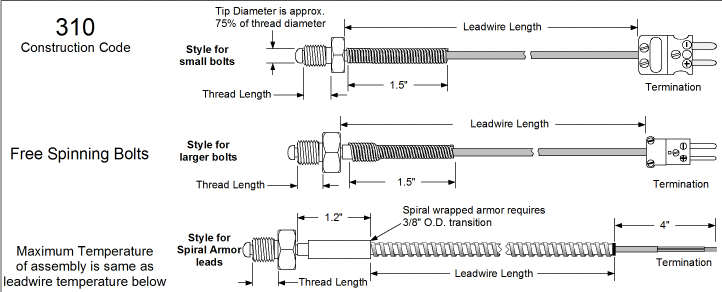

Straight Bolt RTD Assemblies – Type 310
Free spinning bolt
Small thread size bolt spins so assembly does not need to rotate during mounting into a dry hole.
Configure Product View 2D Drawing

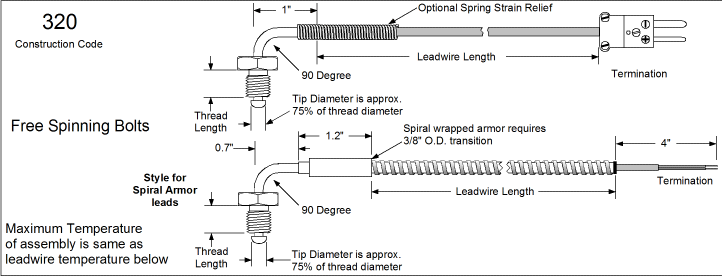

90 Degree Bolt RTD Assemblies – Type 320
Free spinning bolt
Small thread size bolt spins so assembly does not need to rotate during mounting into a dry hole. Tube exits the bolt with a 90-degree angle.
Configure Product View 2D Drawing

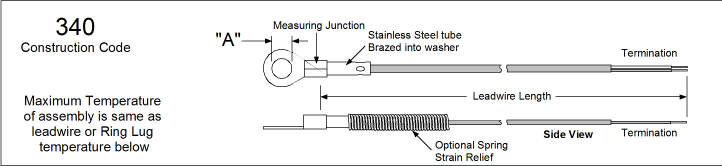

Ring Lug RTD Assemblies – Type 340
Bolt on probe
Ring lug mounted by bolt on a surface to measures a combination of air and the surface.
Configure Product View 2D Drawing

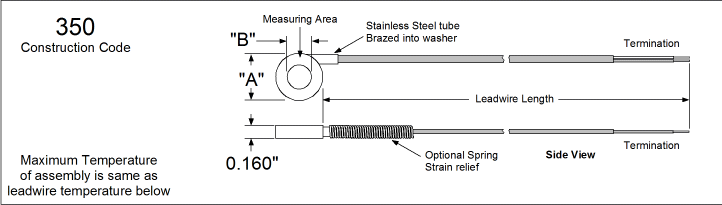

Washer RTD Assemblies – Type 350
Maximum Temperature of assembly is same as leadwire temperature below.
Configure Product View 2D Drawing

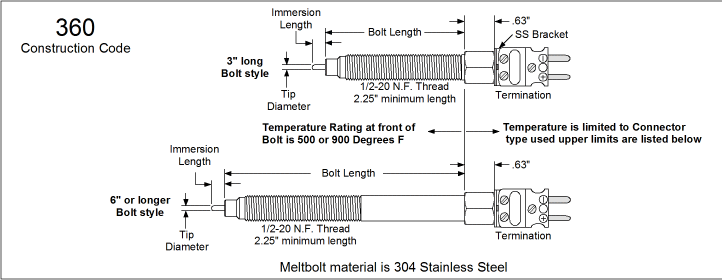

Melt Bolt Fixed Connector RTD Assemblies – Type 360
Meltbolt material is 304 Stainless Steel
Configure Product View 2D Drawing

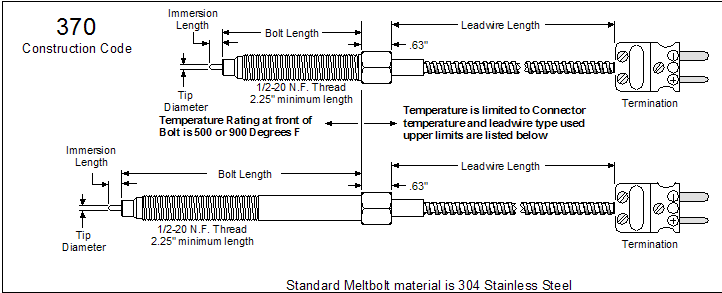

Melt Bolt Flexible Lead RTD Assemblies – Type 370
Standard Meltbolt material is 304 Stainless Steel
Configure Product View 2D Drawing
